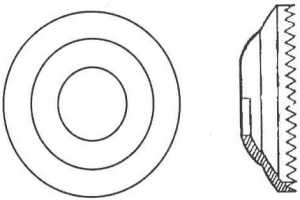

CONICAL WASHER

A CONICAL WASHER is an elastic washer with a curved, wave-shaped, or butterfly-like spring structure. When compressed, it generates a spring-back force that helps compensate for assembly clearance, maintain axial pressure, and provide auxiliary resistance against loosening.

Product Name: CONICAL WASHER / Butterfly-Type Spring Washer
Product Type: Elastic washer / spring washer
Product Structure: Butterfly-shaped, curved, or wave-form spring structure
Primary Functions: Provides spring force, compensates for clearance, and maintains preload
Inner Diameter: Selected according to the matching screw, bolt, or shaft diameter
Outside Diameter: Standard dimensions or as specified by drawing
Thickness and Height: Determined according to load, compression travel, and available installation space
Materials: Spring steel, stainless steel, carbon steel, or other specified materials
Heat Treatment: Can be evaluated according to elasticity, hardness, and fatigue-resistance requirements
Surface Treatments: Zinc plating, nickel plating, black oxide, passivation, or other specified finishes
Production Methods: Stamping, forming, and heat treatment
Production Options: Standard specifications or custom production based on drawings
Packaging: Bulk packing, bag packing, or box packing

Provides Elastic Preload

When compressed, the butterfly-shaped spring structure generates axial spring-back force, helping maintain contact pressure between components.

Compensates for Assembly Clearance

The elastic structure can absorb changes in clearance caused by dimensional tolerances, wear, or thermal expansion and contraction, helping reduce movement within the assembly.

Provides Auxiliary Anti-Loosening Performance

Continuous spring force can compensate for part of the preload loss and help reduce the possibility of screw loosening under general vibration conditions.

Saves Installation Space

The thin elastic structure can provide compression travel within limited axial space, making it suitable for compact and precision assemblies.

Suitable for Various Equipment

CONICAL WASHERS are commonly used in electronic and electrical equipment, automotive and motorcycle components, machinery, bearing assemblies, home appliances, and precision instruments.
