FLAT WASHER

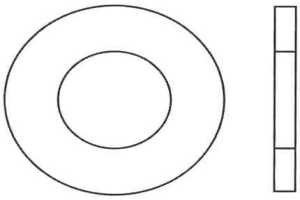

FLAT WASHER Structure

FLAT WASHER

A FLAT WASHER is a thin, ring-shaped component installed between a screw, bolt, or nut and the workpiece. Its primary functions are to distribute fastening pressure, protect the workpiece surface, and adjust assembly spacing.

Product Name: FLAT WASHER / Flat Washer
Product Structure: Flat ring-shaped washer with a central hole
Inner Diameter: Selected according to the size of the matching screw or bolt
Outside Diameter: Standard outside diameter, large outside diameter, small outside diameter, or as specified by drawing
Thickness: Selected according to load distribution, spacing, and assembly requirements
Materials: Carbon steel, stainless steel, copper, brass, aluminum, plastic, or other specified materials
Surface Treatments: Zinc plating, nickel plating, black oxide, phosphate coating, passivation, or other specified finishes
Dimensional Precision: Manufactured according to inner diameter, outside diameter, thickness, and flatness requirements
Applicable Standards: DIN, ISO, JIS, ANSI, or customer-specified standards
Production Methods: Stamping, machining, or other processes according to product structure
Production Options: Standard specifications, custom production based on drawings, and sample development
Packaging: Bulk packing, bag packing, box packing, or customized packaging upon request

Category:

Distributes Fastening Pressure

A FLAT WASHER increases the contact area between the screw head or nut and the workpiece, allowing fastening pressure to be distributed more evenly across the workpiece surface and reducing excessive localized stress.

Protects the Workpiece Surface

The washer separates the screw head or nut from the workpiece, helping reduce scratches, indentations, coating damage, and deformation around the mounting hole during tightening or removal.

Compensates for Hole Size and Assembly Spacing

A FLAT WASHER can cover larger mounting holes or adjust spacing between components, making it suitable for sheet metal, machinery, furniture, and various assembly structures.

Multiple Material Options Available

Metallic or non-metallic materials can be selected according to strength, rust resistance, corrosion resistance, electrical conductivity, insulation, and weight requirements, with different surface treatments available as needed.

Wide Range of Applications

FLAT WASHERS can be used with screws, bolts, nuts, and other fasteners. They are commonly used in machinery, automotive components, electronics, home appliances, architectural hardware, and industrial equipment.
